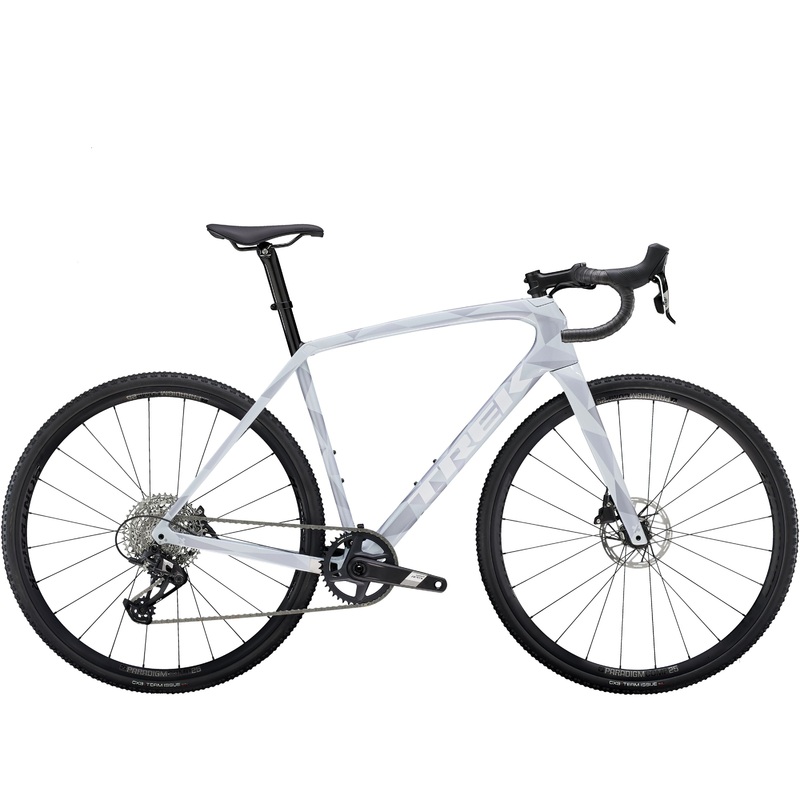

Boone 5 Disc is a carbon cyclocross race bike thats built for crushing any CX course even the most legendary on the UCI circuit. The sleek, lightweight carbon frame has terrain-smoothing Rear IsoSpeed and is trimmed with parts that perform in any condition
Boone 5 Disc is a carbon cyclocross race bike thats built for crushing any CX course even the most legendary on the UCI circuit. The sleek, lightweight carbon frame has terrain-smoothing Rear IsoSpeed and is trimmed with parts that perform in any conditions, like a capable SRAM Apex drivetrain, vibration-absorbing handlebar, and powerful disc brakes that deliver stopping power in bumpy, muddy terrain.
IsoSpeed takes the edge off body-beating course bumps and gravel chatter so you can stay stronger longer, without giving up any pedaling efficiency.
Our exclusive technologies give you and our pro racers the race-ready details will keep you out front: Ultra stable and compliant IsoSpeed fork. Smarter cable routing. Better shoulderability. Rugged 3S chain keeper.
This bike doesnt come with pedals because youll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.
| Frame | 600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 BB, flat mount disc, 142x12mm thru axle |
| Fork | Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle |
| Wheel Front | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle / |
| Wheel Rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142×12 thru axle |
| Tire | Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32mm |
| Skewer Front | Bontrager Switch thru axle, removable lever |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | SRAM Apex, 12 speed |
| Rear Derailleur | SRAM Apex XPLR, 44T max cog |
| Crank | SRAM Apex 1, 40T, DUB Wide, 165mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XPLR PG-1231, 11-44, 12 speed |
| Chain | SRAM Apex, 12 speed |
| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake Lever | SRAM Apex, 12 speed |
| Brake Rotor | SRAM Paceline, rounded, centerlock, 160mm |
| Saddle | Verse Short Comp, steel rails, 155mm width |
| Seatpost | Bontrager carbon seatmast cap, 5mm offset, short length |
| Handlebar | Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 38cm width |
| Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
495254565861
| B B Drop | 7 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 51.8 |
| Frame Reach | 37.5 |
| Frame Size Number | 49 cm |
| Frame Stack | 53.4 |
| Head Angle | 71.0 |
| Head Tube Length | 11 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 64.5 |
| Saddle Rail Height Max Tall | 67.5 |
| Saddle Rail Height Min Short | 58.5 |
| Saddle Rail Height Min Tall | 61.5 |
| Seat Tube | 47.6 |
| Seat Tube Angle | 75.0 |
| Standover | 74.7 |
| Trail | 7.4 |
| Wheelbase | 100.1 |
| Wheel Size | 700c |
| B B Drop | 7 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 53.1 |
| Frame Reach | 37.9 |
| Frame Size Number | 52 cm |
| Frame Stack | 54.7 |
| Head Angle | 71.5 |
| Head Tube Length | 12.3 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 67.5 |
| Saddle Rail Height Max Tall | 70.5 |
| Saddle Rail Height Min Short | 61.5 |
| Saddle Rail Height Min Tall | 64.5 |
| Seat Tube | 49.3 |
| Seat Tube Angle | 74.5 |
| Standover | 76.1 |
| Trail | 7.1 |
| Wheelbase | 100.5 |
| Wheel Size | 700c |
| B B Drop | 6.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 54.4 |
| Frame Reach | 38.3 |
| Frame Size Number | 54 cm |
| Frame Stack | 56.2 |
| Head Angle | 72.0 |
| Head Tube Length | 13.8 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 70 |
| Saddle Rail Height Max Tall | 73 |
| Saddle Rail Height Min Short | 64 |
| Saddle Rail Height Min Tall | 67 |
| Seat Tube | 51.3 |
| Seat Tube Angle | 74.0 |
| Standover | 77.9 |
| Trail | 6.7 |
| Wheelbase | 101 |
| Wheel Size | 700c |
| B B Drop | 6.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 55.8 |
| Frame Reach | 38.7 |
| Frame Size Number | 56 cm |
| Frame Stack | 58 |
| Head Angle | 72.0 |
| Head Tube Length | 15.7 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 73 |
| Saddle Rail Height Max Tall | 76 |
| Saddle Rail Height Min Short | 67 |
| Saddle Rail Height Min Tall | 70 |
| Seat Tube | 53.3 |
| Seat Tube Angle | 73.6 |
| Standover | 79.6 |
| Trail | 6.7 |
| Wheelbase | 102 |
| Wheel Size | 700c |
| B B Drop | 6.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 57 |
| Frame Reach | 39.1 |
| Frame Size Number | 58 cm |
| Frame Stack | 59.7 |
| Head Angle | 72.3 |
| Head Tube Length | 17.6 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 75 |
| Saddle Rail Height Max Tall | 78 |
| Saddle Rail Height Min Short | 69 |
| Saddle Rail Height Min Tall | 72 |
| Seat Tube | 55.3 |
| Seat Tube Angle | 73.3 |
| Standover | 81.6 |
| Trail | 6.6 |
| Wheelbase | 102.8 |
| Wheel Size | 700c |
| B B Drop | 6.5 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 58.8 |
| Frame Reach | 39.7 |
| Frame Size Number | 61 cm |
| Frame Stack | 62.4 |
| Head Angle | 72.3 |
| Head Tube Length | 20.5 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 78 |
| Saddle Rail Height Max Tall | 81 |
| Saddle Rail Height Min Short | 72 |
| Saddle Rail Height Min Tall | 75 |
| Seat Tube | 58.3 |
| Seat Tube Angle | 73.0 |
| Standover | 84.3 |
| Trail | 6.6 |
| Wheelbase | 104.3 |
| Wheel Size | 700c |
